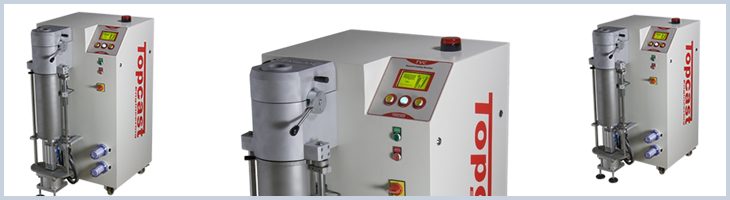

TVC5 D Casting Systems
| FEATURES | TECHNICAL INFO | |
|---|---|---|
| Number of casting programs | 100 | |
| Working capacity of graphite cruicable | 200 g alüminyum, 400 g bronz, 500 g gümüş, 1000 g altın | |
| Flask max. Diameter.(mm) | 150 mm standart, 200 mm opsiyonel | |
| Flask max. Height (mm) | 300 mm standart, 400 mm opsiyonel | |
| Induction power | 5 kW | |
| Vacuum pomp | internal 25 m3/h | |
| Pressure over vacuum | 3 bar | |
| Max. Temperature | 1600 derece | |
| Shot maker | optional | |
| Autotest with data report | yes | |
| Monitoring data | optional | |
| Flask ckeck before casting | yes | |
| Vacuum leakage detector | yes | |
| Oxygen analyzer | optional | |
| RS232 remote interface | optional | |
| Main Alloys | Gold (Au) , Silver (Ag) , Bakır (Cu) , Pirinç , Bronz , Alüminyum (Al) ve diğer aloylar |
